New Units » KTM » 50 SX Mini
Model Quick Search

$2,599.00

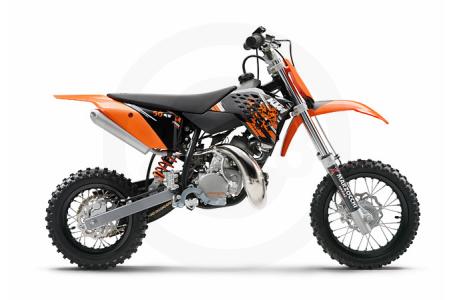

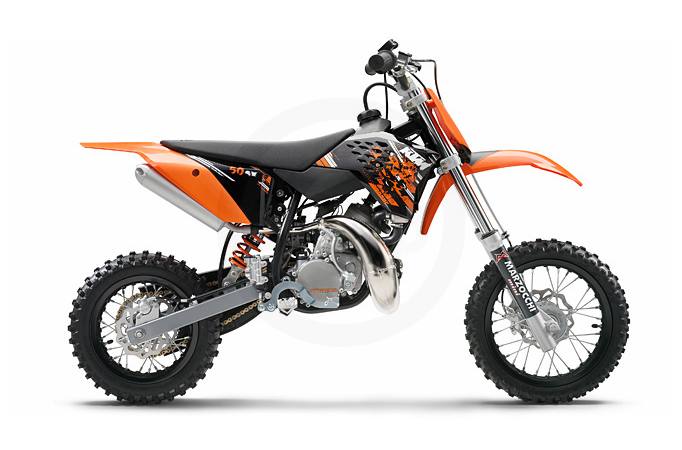

2008 KTM 50 SX Mini
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Only the best power, performance and appearance are good enough for first place: the KTM 50 SX Mini – a winner for every ace from the ages of six to nine. The seat height is adjustable from 650 mm upwards, with long suspension travel, disk brakes at the front and rear, a chain guard, as well as the best power output available in this class.


And getting off it? Yeah okay, but only when the tank is empty.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Transmission: Single gear automatic
    • Carburetor: Dell'Orto PHBG 19 BS
    • Engine lubrication: Mixture lubrication 1:60
    • Transmission lubrication: ATF
    • Primary drive: 16:57
    • Final drive: 10:44
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra analogue
    Chassis
    • Frame: Double grinded central-double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi Ø 32 mm (1.26")
    • Rear suspension: WP monoshock
    • Suspension travel front / rear: 185 / 185 mm (7.28" / 7.28")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Disc brake Ø 140 mm (5.51")
    • Rims, front / rear: 1.6 x 12"; 1.6 x 10" Aluminium
    • Tires, front / rear: 2.50 x 12"; 2.75 x 10"
    • Chain: 1/2 x 3/16"
    • Main silencer: Aluminium
    • Steering head angle: 66°
    • Wheel base: 1030 mm (40.55")
    • Ground clearance (unloaded): 255 mm (10.04")
    • Seat height: 650 / 675 mm (adjustable) (25.59 / 26.57")
    • Fuel capacity: approx. 1.8 liters (0.48 gal)
    • Weight (no fuel): approx. 38.8 kg (85.55 lbs)
    • :

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid
    Fuel System Dell'Orto PHBG 19 BS
    Ignition Seletra analog
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 83.33 lbs (37.8 kg)
    Fuel Capacity 0.53 gal (2 l)
    Wheelbase 35.98 in. (914 mm)
    Ground Clearance Unloaded: 7.24 in. (184 mm)
    Seat Height Adjustable: 25.59 / 26.57 in. (650 / 675 mm)
    Transmission
    Transmission Single gear automatic
    Final Drive 11:44

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 50 SX Mini
    Style Youth
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 83.33 lbs (37.8 kg)
    Fuel Capacity 0.53 gal (2 l)
    Wheelbase 35.98 in. (914 mm)
    Ground Clearance Unloaded: 7.24 in. (184 mm)
    Seat Height Adjustable: 25.59 / 26.57 in. (650 / 675 mm)
    Trail
    Rake
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid
    Compression Ratio
    Fuel System DellOrto PHBG 19 BS
    Ignition Seletra analog
    General
    Colors
    Warranty
    Transmission
    Transmission Single gear automatic
    Final Drive 11:44
