$7,888.00

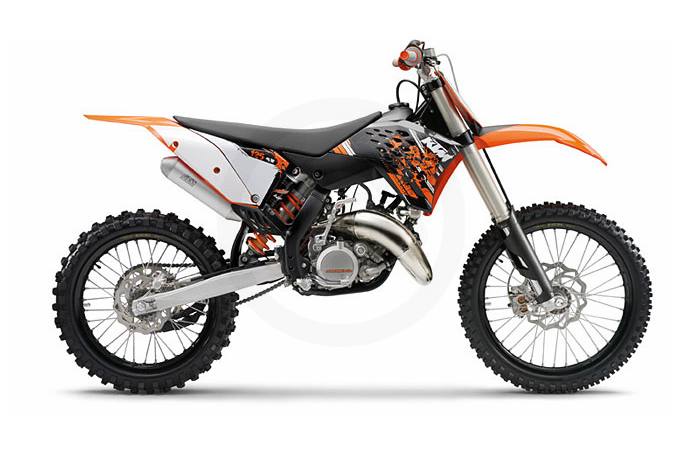

2008 KTM 125 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Anybody who’s looking for an extremely light and agile two-stroke cross bike that’s got so much power it makes even four-strokes eat its dust… can stop looking! And the 125 SX shows its MX2 competitors the ropes on more than the racecourse. An optimised chassis, fierce from the first second all the way to the finish line – the ultimate small two-stroke that can totally take on the big guys.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 124.8 cc
    • Bore x stroke: 54 x 54.5 mm (2.13 x 2.15")
    • Starter: Kickstarter
    • Transmission: 6 gears
    • Carburetor: Keihin PWK 39
    • Control: TVC power valve
    • Lubrication: Mixture oil lubrication 1:40
    • Transmission lubrication: 15W50
    • Primary drive: 23:73
    • Final drive: 13:50
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital magneto CDI
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium 7020
    • Handlebar: Renthal Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 43 mm (1.69")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front / rear: 300 / 335 mm (11.81 / 13.19")
    • Brakes, front / rear: Disc brakes 260 / 220 mm (10.24 / 8.66")
    • Rims, front / rear: 1.60 x 21"; 2.15 x 19"
    • Tires, front / rear: 80/100-21"; 100/90-19"
    • Chain: 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63°
    • Wheel base: 1471±10 mm (57.91±0.39")
    • Ground clearance (unloaded): 390 mm (15.35")
    • Seat height: 925 mm (36.42")
    • Fuel capacity: approx. 7.5 liters (2 gal)
    • Weight (no fuel): approx. 90.8 kg (200.2 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 124.8 cc
    Bore and Stroke 54 x 54.5 mm (2.13 x 2.15 in.)
    Cooling Liquid
    Fuel System Keihin PWK-S 38 AG
    Ignition Kokusan
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes Disc brakes 10.24 in. (260 mm)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber
    Rear Brakes Disc brakes 8.66 in. (220 mm)
    Rear Tire 100/90-19 in.
    Dimensions
    Dry Weight 200.2 lbs (90.8 kg)
    Fuel Capacity 2.11 gal (8 l)
    Wheelbase 57.91 ± 0.39 in. (1471 ± 10 mm)
    Ground Clearance 15.35 in. (390 mm)
    Seat Height 36.42 in. (925 mm)
    Rake 63°
    Transmission
    Transmission 6 gears
    Final Drive 13:50

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 125 SX
    Style Off-Road
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes Disc brakes 10.24 in. (260 mm)
    Front Tire 80/100-21 in.
    Rear Suspension WP PDS shock absorber
    Rear Brakes Disc brakes 8.66 in. (220 mm)
    Rear Tire 100/90-19 in.
    Dimensions
    Dry Weight 200.2 lbs (90.8 kg)
    Fuel Capacity 2.11 gal (8 l)
    Wheelbase 57.91 ± 0.39 in. (1471 ± 10 mm)
    Ground Clearance 15.35 in. (390 mm)
    Seat Height 36.42 in. (925 mm)
    Trail
    Rake 63°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 124.8 cc
    Bore and Stroke 54 x 54.5 mm (2.13 x 2.15 in.)
    Cooling Liquid
    Compression Ratio
    Fuel System Keihin PWK-S 38 AG
    Ignition Kokusan
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears
    Final Drive 13:50
