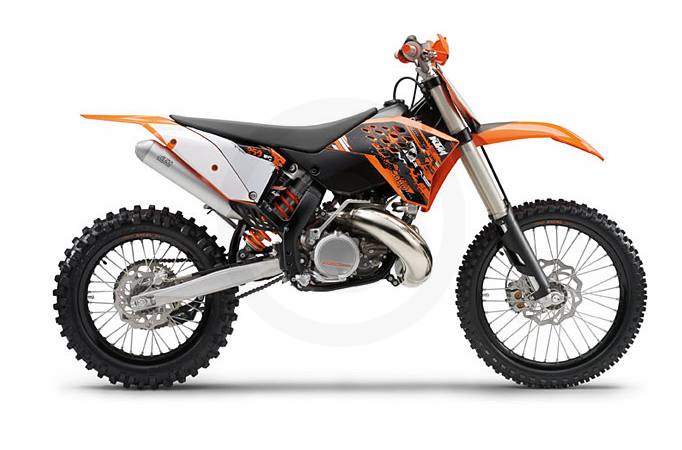

2008 KTM 250 XC
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

If you want understandable and low-cost technology, this super-powerful and lightweight two-stroke is the perfect choice for the E2 class. The engine characteristic has been tuned for enduro use only. The choice between two ignition curves, plus a new crankshaft and modified casing delivers better power reserves in all speed ranges.


The completely new frame with new PDS geometry, the improved suspension and new bodywork overall make the speedy 250 XC a serious challenger for the four-strokes. And since the casing and ignition rotor are already prepped for it, there’s nothing standing in the way of an E-starter upgrade.

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 249 cc
    • Bore x stroke: 66.4 x 72 mm (2.61 x 2.83")
    • Starter: Kickstarter (e-start add-ready)
    • Transmission: 5 gears XC semi-close-ratio
    • Carburetor: Keihin PWK 36 S AG
    • Control: TVC twin valve control
    • Lubrication: Mixture oil lubrication 1:60
    • Transmission lubrication: 15W50
    • Primary drive: 26:72
    • Final drive: 14:50
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital E
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium 7020
    • Handlebar: Magura Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP monoshock PDS
    • Suspension travel front / rear: 300 / 335 mm (11.81 / 13.19")
    • Front brake: 260mm (10.24") disc, Brembo double piston
    • Rear brake: 220mm (8.66") disc, Brembo single piston
    • Rims, front / rear: 1.60 x 21"; 2.15 x 18"
    • Tires, front / rear: 80/100-21"; 110/100-18"
    • Chain: X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63.5°
    • Trail: Adjustable
    • Wheel base: 1475±10 mm (58.07±0.39")
    • Ground clearance (unloaded): 385 mm (15.16")
    • Seat height: 925 mm (36.42")
    • Fuel capacity: approx. 11 liters (2.9 gal)
    • Weight (no fuel): approx. 97.6 kg (215.2 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 249 cc
    Bore and Stroke 2.61 x 2.83 in. (66.4 x 72 mm)
    Cooling Liquid
    Fuel System Keihin PWK 36 S AG
    Ignition Kokusan digital E
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/100-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 110/100-18 in.
    Dimensions
    Dry Weight 221.34 lbs (100.4 kg)
    Fuel Capacity 2.9 gal (11 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ±10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Transmission
    Transmission 5 gears XC semi-close-ratio
    Final Drive 14:50

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 250 XC
    Style Off-Road
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm); Travel: 11.81 in. (300 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80/100-21 in.
    Rear Suspension WP monoshock PDS; Travel: 13.19 in. (335 mm)
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 110/100-18 in.
    Dimensions
    Dry Weight 221.34 lbs (100.4 kg)
    Fuel Capacity 2.9 gal (11 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ±10 mm)
    Ground Clearance 15.16 in. (385 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 249 cc
    Bore and Stroke 2.61 x 2.83 in. (66.4 x 72 mm)
    Cooling Liquid
    Compression Ratio
    Fuel System Keihin PWK 36 S AG
    Ignition Kokusan digital E
    General
    Colors
    Warranty
    Transmission
    Transmission 5 gears XC semi-close-ratio
    Final Drive 14:50
