$8,999.00

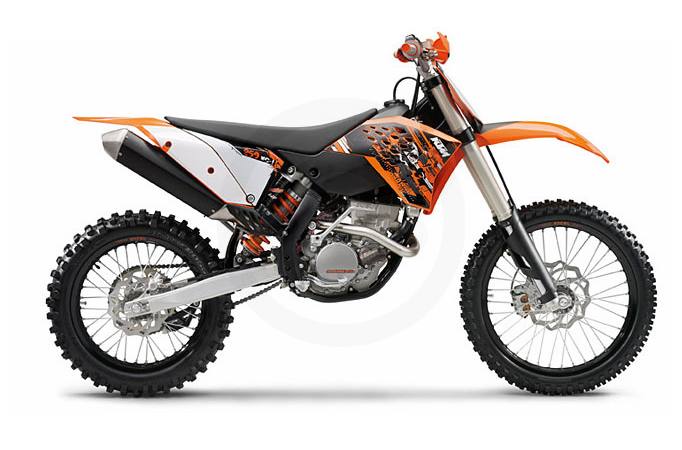

2008 KTM 250 XC-F
Request a Quote Financing Calculator Request a Brochure Financing Form

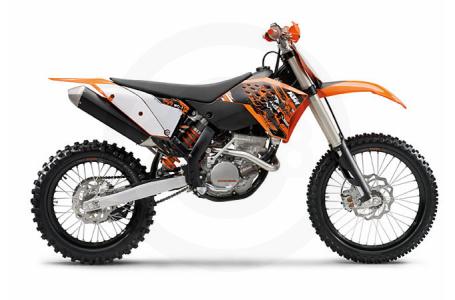

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

If a bike can truly earn the name “muscle man” in the small class, then this super-light and extremely agile four-stroke does. Equipped with state of the art, four-valve technology, the XC-F delivers plenty of power, which it applies perfectly to the track every time. Excellent power development – from enormous force at lower speeds, to maximum performance at peak rpms.


But that is only the first key to success. Because, with its new chassis and totally new bodywork, the 250 XC-F is certainly a constant guarantee of podium placements.

    Engine
    • Engine type: Single cylinder, 4-stroke
    • Displacement: 249.5 cc
    • Bore x stroke: 76 x 55 mm (2.99 x 2.17")
    • Compression ratio: 12.8:1
    • Starter: Kickstarter/e-starter 4 Ah
    • Transmission: 5 gears SX ratio
    • Carburetor: Keihin MX FCR 39
    • Lubrication: Pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 22:68
    • Final drive: 13:48
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital 4K-3
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium 7020, removable
    • Handlebar: Renthal Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP monoshock PDS
    • Suspension travel, front / rear: 300 / 335 mm (11.81 / 13.19")
    • Front brake: 260 mm (10.24") disc, Brembo double piston
    • Rear brake: 220 mm (8.66") disc, Brembo single piston
    • Rims, front / rear: 1.60 x 21"; 2.15 x 18"
    • Tires, front / rear: 80/100-21"; 100/100-18"
    • Chain: X-ring chain 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63.5°
    • Trail: Adjustable
    • Wheel base: 1475±10 mm (58.07±0.39")
    • Ground clearance (unloaded): 380 mm (15")
    • Seat height: 925 mm (36.42")
    • Fuel capacity (approx.): 9.2 liters (2.43 gal)
    • Weight -no fuel (approx.): 104.2 kg (229.7 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 249.5 cc
    Bore and Stroke 76 x 55 mm (2.99 x 2.17 in.)
    Cooling Liquid
    Compression Ratio 12.8:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80 x 100-21 in.
    Rear Suspension WP monoshock PDS
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 100 x 100-18 in.
    Dimensions
    Dry Weight 223.98 lbs (101.6 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Transmission
    Transmission 5 gears SX ratio
    Final Drive 13:48

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 250 XC-F
    Style Off-Road
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston
    Front Tire 80 x 100-21 in.
    Rear Suspension WP monoshock PDS
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston
    Rear Tire 100 x 100-18 in.
    Dimensions
    Dry Weight 223.98 lbs (101.6 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 249.5 cc
    Bore and Stroke 76 x 55 mm (2.99 x 2.17 in.)
    Cooling Liquid
    Compression Ratio 12.8:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3
    General
    Colors
    Warranty
    Transmission
    Transmission 5 gears SX ratio
    Final Drive 13:48
