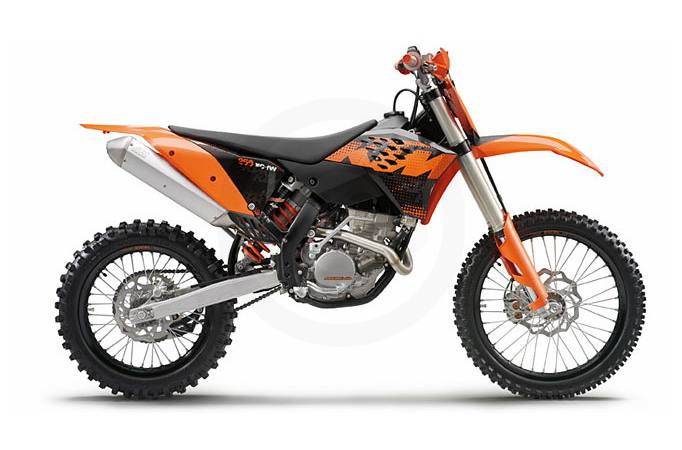

2008 KTM 250 XCF-W
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Out there in offroad heaven you have your hands full without having to think about the mechanics of the motorbike. We know what that means from our own experience so that’s why every screw and every technical detail on your KTM is checked umpteen times, right there, where it is supposed to be. You can really be confident that your bike is never going to let you down.

    Engine
    • Engine type: Single cylinder, 4-stroke
    • Displacement: 249.5 cc
    • Bore x stroke: 76 x 55 mm (2.99 x 2.17")
    • Compression ratio: 12.8:1
    • Starter / Battery: Kickstarter/E-Starter / 4 Ah
    • Transmission: 6 gears SX ratio
    • Carburetor: Keihin MX FCR 39
    • Control: 4 V / DOHC with roller rocker levers
    • Lubrication: Pressure lubrication with 2 Eaton pumps
    • Engine lubrication: 10W50
    • Primary drive: 22:68
    • Final drive: 13:48
    • Cooling: Liquid cooled
    • Clutch: Wet multi-disc clutch, operated hydraulically
    • Ignition: Kokusan digital 4K-3
    Chassis
    • Frame: Central double-cradle-type 25CrMo4
    • Subframe: Aluminium, removable
    • Handlebar: Magura Aluminium Ø 28/22 mm (1.10/0.87")
    • Front suspension: WP USD Ø 48 mm (1.89")
    • Rear suspension: WP monoshock PDS
    • Suspension travel, front / rear: 300 / 335 mm (11.81 / 13.19")
    • Front brake: 260 mm (10.24") disc, Brembo double piston caliper
    • Rear brake: 220 mm (8.66") disc, Brembo single piston caliper
    • Rims, front / rear: 1.60 x 21"; 2.15 x 18" Excel
    • Tires, front / rear: 80/100-21"; 100/100-18"
    • Chain: 5/8 x 1/4"
    • Main silencer: Aluminium
    • Steering head angle: 63.5°
    • Trail: Adjustable
    • Wheel base: 1475±10 mm (58.07±0.39")
    • Ground clearance (unloaded): 380 mm (15")
    • Seat height: 925 mm (36.42")
    • Fuel capacity (approx.): 9.2 liters (2.43 gal)
    • Weight - no fuel (approx.): 104.2 kg (229.7 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 249.5 cc
    Bore and Stroke 76 x 55 mm (2.99 x 2.17 in.)
    Cooling Liquid
    Compression Ratio 12.8:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston caliper
    Front Tire 80 x 100-21 in.
    Rear Suspension WP monoshock PDS
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston caliper
    Rear Tire 100 x 100-18 in.
    Dimensions
    Dry Weight 229.7 lbs (104.2 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance Unloaded: 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Transmission
    Transmission 6 gears SX ratio
    Final Drive 13:48

    Compare Models

    		 Print








    Year 2008
    Manufacturer KTM
    Model 250 XCF-W
    Style Off-Road
    Chassis
    Front Suspension WP USD Ø 1.89 in. (48 mm)
    Front Brakes 10.24 in. (260 mm) disc, Brembo double piston caliper
    Front Tire 80 x 100-21 in.
    Rear Suspension WP monoshock PDS
    Rear Brakes 8.66 in. (220 mm) disc, Brembo single piston caliper
    Rear Tire 100 x 100-18 in.
    Dimensions
    Dry Weight 229.7 lbs (104.2 kg)
    Fuel Capacity 2.43 gal (9.2 l)
    Wheelbase 58.07 ± 0.39 in. (1475 ± 10 mm)
    Ground Clearance Unloaded: 15 in. (380 mm)
    Seat Height 38.78 in. (985 mm)
    Trail Adjustable
    Rake 63.5°
    Engine
    Engine Type Single cylinder, 4-stroke
    Displacement 249.5 cc
    Bore and Stroke 76 x 55 mm (2.99 x 2.17 in.)
    Cooling Liquid
    Compression Ratio 12.8:1
    Fuel System Keihin MX FCR 39
    Ignition Kokusan digital 4K-3
    General
    Colors
    Warranty
    Transmission
    Transmission 6 gears SX ratio
    Final Drive 13:48
