New Units » Kawasaki » Mule™ 4010 4x4
Model Quick Search

$12,049.00

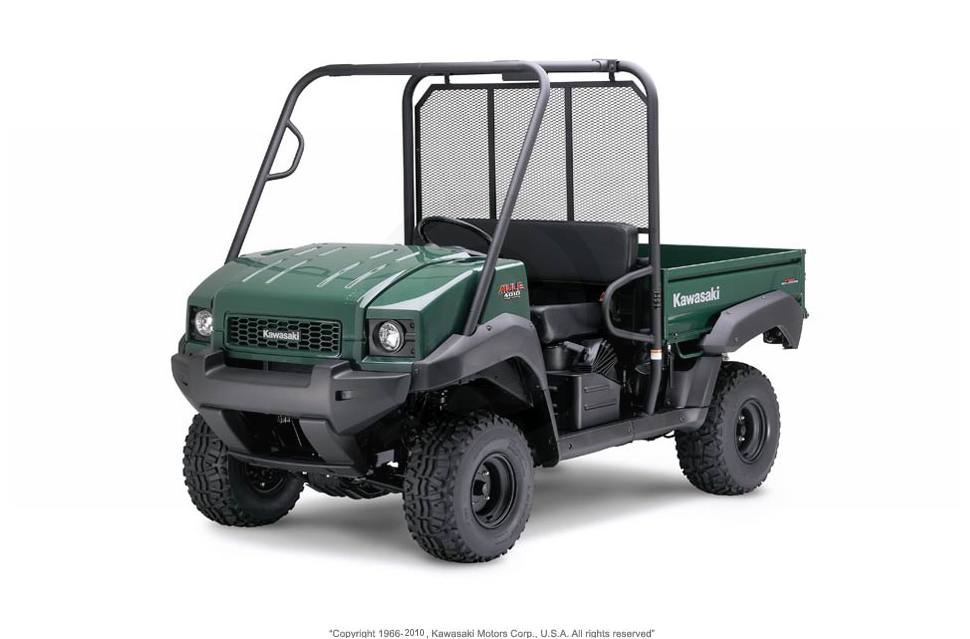

2009 Kawasaki Mule™ 4010 4x4
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    ENGINE
    • Type: 4-Stroke, Fuel Injected V-Twin, Liquid-Cooled, OHV
    • Displacement: 617cc
    • Bore and Stroke: 76.0 x 68.0 mm
    • Compression Ratio: 10.3:1
    • Starting: Electric
    • Lubrication: Forced Lubrication, Wet Sump
    DRIVETRAIN
    • Transmission: Automatic, Forward (Hi/Lo) and reverse
    • Primary Drive: Belt Converter
    • Final Drive: Gear (Selectable 2WD/4WD), Dual Mode Differential
    • Primary Reduction Ratio: 3.9~0.85 (Belt Converter)
    • Final Reduction Ratio: 5.4 (81/15)
    FRAME
    • Type: Ladder Type, Tubular Steel
    • Front Suspension: Independent, MacPherson Strut
    • Rear Suspension: Semi-Independent, De Dion Axle
    • Front Wheel Travel: 100 mm
    • Rear Wheel Travel: 70 mm
    • Front Tire: 23 x 11.00-10 T/L
    • Rear Tire: 23 x 11.00-10 T/L
    BRAKES
    • Front: Hydraulic Drums
    • Rear: Hydraulic Drums
    • Parking: Mechanical Drum
    DIMENSIONS
    • Overall Length: 3, 005 mm
    • Overall Width: 1, 575 mm
    • Overall Height: 1, 925 mm
    • Wheelbase: 1, 870 mm
    • Ground Clearance: 175 mm
    • Seat Height: 865 mm
    • Bed Length x Width x Height: 1, 175 x 1, 310 x 288 mm
    • Curb Weight : 638 kg
    • Fuel Tank Capacity: 23.5 L.
    PERFORMANCE
    • Maximum Torque: 47.0 N•m@ 2,500 RPM
    • Top Speed: 38 km/h (Governed)
    • Maximum Permissible Load: 603 kg
    • Cargo Bed Load Capacity: 363.6 kg
    • Seating Capacity: 2
    • Maximum Power: 14.7 kW @ 3, 600 RPM
    • Minimum Turning Radius: 3.4 m
    COLORS
    • Woodsman Green
    • Dark Royal Red

    Specifications

    Engine
    Engine Type 4-Stroke, Fuel Injected V-Twin, Liquid-Cooled, OHV
    Displacement 617cc
    Bore and Stroke 76.0 x 68.0 mm
    Compression Ratio 10.3:1
    Ignition Electric
    Chassis
    Front Suspension Independent, MacPherson Strut
    Front Brakes Hydraulic Drums
    Front Tire 23 x 11.00-10 T/L
    Rear Suspension Semi-Independent, De Dion Axle
    Rear Brakes Hydraulic Drums
    Rear Tire 23 x 11.00-10 T/L
    Dimensions
    Dry Weight 638 kg
    Fuel Capacity 23.5 L.
    Wheelbase 1, 870 mm
    Ground Clearance 175 mm
    Box Capacity 363.6 kg
    Transmission
    Transmission Automatic, Forward (Hi/Lo) and reverse
    General
    Colors Woodsman Green, Dark Royal Red
    Warranty 12 months

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kawasaki
    Model Mule™ 4010 4x4
    Style Side x Side
    MSRP* $12,049.00
    Chassis
    Front Suspension Independent, MacPherson Strut
    Front Brakes Hydraulic Drums
    Front Tire 23 x 11.00-10 T/L
    Rear Suspension Semi-Independent, De Dion Axle
    Rear Brakes Hydraulic Drums
    Rear Tire 23 x 11.00-10 T/L
    Dimensions
    Dry Weight 638 kg
    Front Travel
    Fuel Capacity 23.5 L.
    Rear Travel
    Wheelbase 1, 870 mm
    Ground Clearance 175 mm
    Box Capacity 363.6 kg
    Rack Capacity
    Towing Capacity
    Engine
    Engine Type 4-Stroke, Fuel Injected V-Twin, Liquid-Cooled, OHV
    Displacement 617cc
    Bore and Stroke 76.0 x 68.0 mm
    Cooling
    Compression Ratio 10.3:1
    Fuel System
    Ignition Electric
    General
    Speedometer
    Tachometer
    Odometer
    Colors Woodsman Green, Dark Royal Red
    Warranty 12 months
    Transmission
    Transmission Automatic, Forward (Hi/Lo) and reverse
    Drive System
