SPRING ONLY

Effortless days of discovering new epic adventures is what riding a Summit is all about. The 2022 Summit X with Expert Package delivers with always-evolving rider-inspired features that inspire riders to elevate their game beyond what they thought possible.

What's New* Narrower 34 in. ski stance

Package Highlights* Two ULTIMATE color options with panel wrap: supreme look and finish, maximum protection
* Premium shock package with stiffer calibration
* Short tunnel with lightweight snowflap
* RAS™ 3 front suspension with lightweight ski spindle and revised ski stopper
* ™otion™ rear suspension with ice scratchers and adjustable limiter strap
* E-TEC® SHOT™ starter standard
* Full-length extruded-profile running boards with large openings
* One-piece lightweight hood on all models
* Flexible handguards
* Short riser block (120 mm/4.7 in.)
* Sea-level calibration available on select configurations
* 4.5 in. digital display
* Smaller-diameter handlebar ends and handgrips
* Ultra-compact and lightweight deep-snow seat
* DS 3 skis
* Belt monitoring system

Engine* ROTAX® Engine: 850 E-TEC® TURBO
* Engine details: Liquid-cooled, two-stroke, turbocharged, eRAVE™
* Horsepower: 165 up to 8,000 ft.
* Cylinders – Displacement: 2 – 849 cc
* Bore – Stroke: 82 mm – 80.4 mm
* Carburation: E-TEC® direct injection with additional booster injectors
* Fuel type – Octane: Premium unleaded – 91
* Fuel tank: 36 L/9.5 US gal
* Oil tank capacity: 3.4 L/3.6 qt

Dry Weight* Dry weight: 212 kg/468 lb (165 in.)

Powertrain* Drive clutch: pDrive™ with clickers
* Driven clutch: QRS Vent Plus
* Drive sprocket pitch: 89 mm/3.5 in.

Suspension* Front suspension: RAS™ 3
* Front shock: HPG™ Plus with lightweight springs
* Front suspension travel: 215 mm/8.5 in.
* Rear suspension: tMotion™ with adjustable limiter strap
* Center shock: HPG™ Plus with lightweight spring
* Rear shock: KYB® PRO 36 Easy-Adjust
* Rear suspension travel: 239 mm/9.4 in. (154, 165 in.)

Dimensions* Overall vehicle length: 3,299 mm/129.9 in. (165 in.)
* Overall vehicle width: 1,080 to 1,110 mm/42.5 to 43.7 in.
* Overall vehicle height: 1,306 mm/51.4 in.
* Ski stance: 864 mm/34 in.
* Track Length x Width x Profile): PowderMax® Light 165 x 16 x 3.0 in.

Features* Frame: REV® Gen4
* Bodywork: Narrow design
* Skis: Pilot™ DS 3
* Seating: Deep-snow ultra-compact and lightweight
* Handlebar: Tapered U-shaped aluminum with J-hooks/Low grab handle/Flexible handguards
* Riser block height: 120 mm/4.7 in.
* Starter: SHOT
* Reverse: RER™
* Brake system: Brembo racing brake with stainless-steel braided brake line
* Heated throttle lever/grips: Standard
* Gauge type: 4.5 in. digital display
* Windshield: Optional
* Runner – Carbide: Square 3/8 – 4 in.
* Bumpers (front/rear): Std/Std
SPRING ONLY

What's New* Narrower 34 in. ski stance

Specifications
--------------

**Engine Type**
850 E-TEC® Turbo

**Displacement**
849cc

**Cylinders**
2

**Bore x Stroke**
82 x 80.4 mm

**Engine Cooling**
Liquid

**Carburetion**
E-TEC® direct injection with additional booster injectors

**Brake Type**
Brembo racing brake with stainless-steel braided brake line

**Drive Clutch**
pDrive™ with clickers

**Driven Clutch**
QRS Vent Plus

**Front Suspension**
Suspension: RAS™ 3; Shock: HPG™ Plus with lightweight springs

**Front Travel**
8.5 in. (215 mm)

**Rear Suspension**
Suspension: tMotion™ with adjustable limiter strap; Center Shock: HPG™ Plus with lightweight spring; Rear Shock: KYB® PRO 36 Easy-Adjust

**Rear Travel**
9.4 in. (239 mm)

**Ski Type**
Pilot™ DS 3

**Ski Stance**
34 in. (864 mm)

**Track Type**
PowderMax® Light

**Track Dimensions**
165 x 16 x 3.0 in.

**Fuel Capacity**
9.5 US gal. (36 L)

**Dry Weight**
468 lb. (212 kg)

**Windshield**
Optional

**Color**
Ultimate Triple Black

**Electric Start**
SHOT

**Hand & Thumb Warmers**
Standard

**Reverse**
RER™

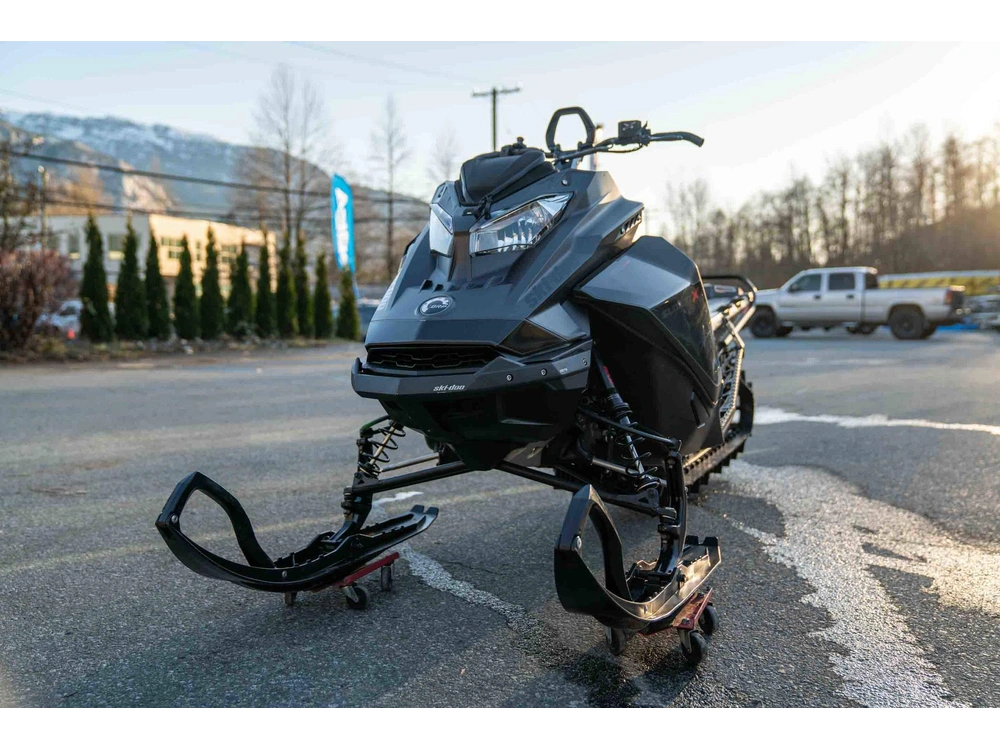

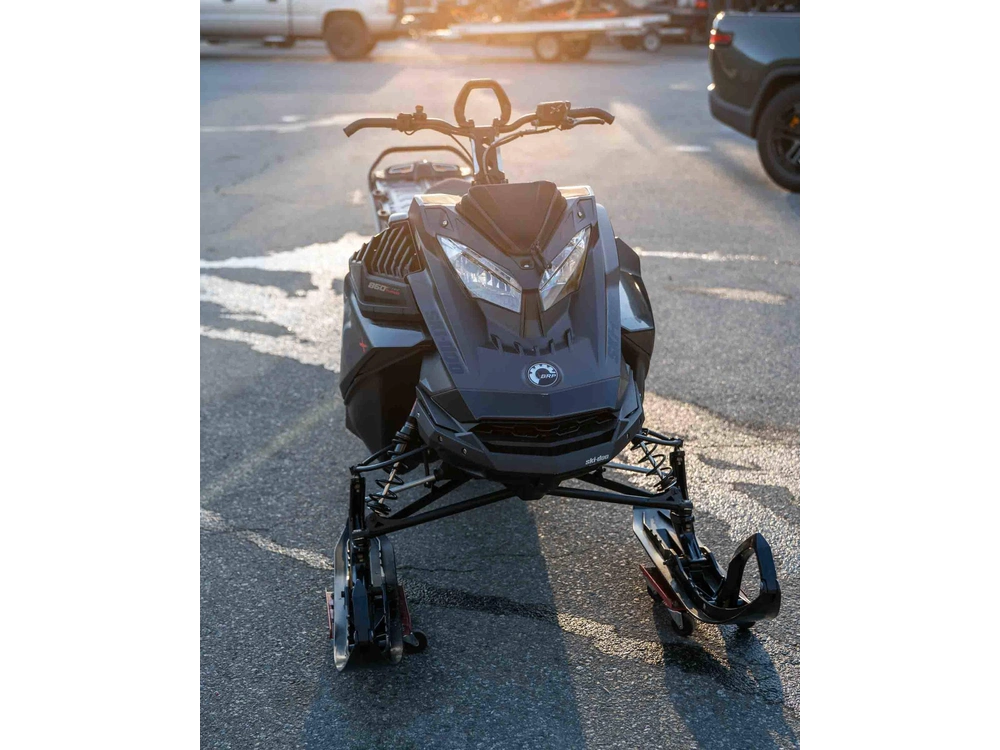

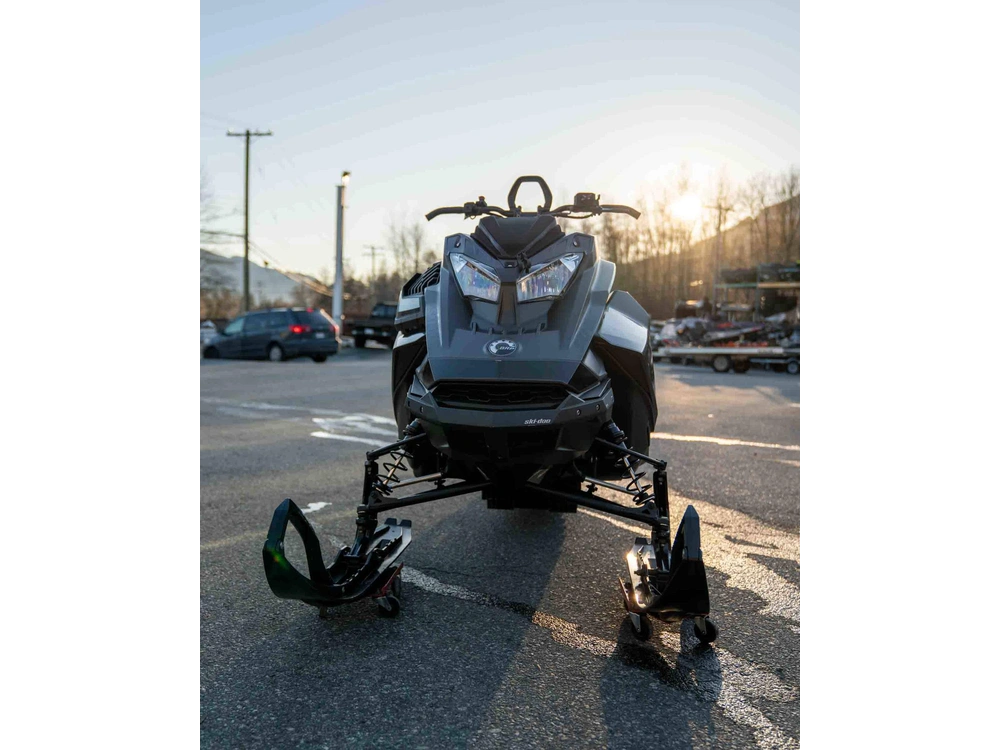

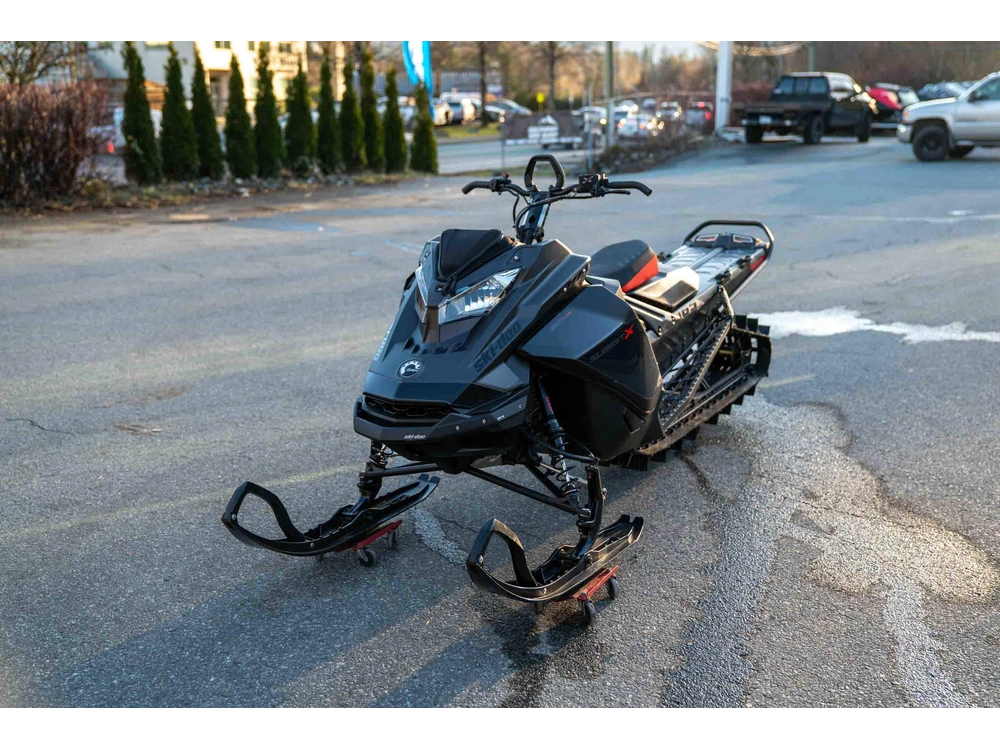

2022 Ski-Doo SUMMIT EXPERT 165 3" 850 TURBO SHOT BLACK
